All In One Android HD Touch Panel PC 10.1 Inch Widescreen With Zero Bezel

  • 1
  • 2
  • 3

Brand Name : ITD/OEM

Model Number : ITD10PPCT5KI5

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Packaging Details : Foam,gift box,master carton,wooden case,pallet

Model Name : ITD10PPCG1K**

IP Rating : IP65 Front Panel

Touch Technology : Projected Capacitive Touch with 10 touch points

Resolution : 1920x1200

CPU : ARM Eight-Core RK3288/RK3368

Main CPU frequency : 1.5GHz

Graphics Card : Android HD

Price : TBA

Contact Now

10.1 inch widescreen all in one Touch Android Panel PC with zero bezel


The new Compact line series of PCAP touch panel PCs from ITD combines the advantages of compact and rugged aluminum die-cast housing with an open platform HMI powered by the Intel Celeron processor J1900 or Intel Core processor i3/i5/i7 as the processor engine. Specifically designed for industrial machinery, intelligent, web-based and smart HMI applications, these Celeron and Core processors are energy efficient and offers other benefits as well.

Specifications:

ModelITD101PPCT5KE1ITD13PPCT5KE1ITD15PPCT5KE1ITD156PPCT5KE1ITD17PPCT5KE1
Size10.1”13.3”15”15.6”17”
Active Area216.81(H)x 135.5(V)293.42(W) × 164.97(H)304.128(H)x 228.096(V)246.0(H) x 184.5(V)337.920(H) x 270.336(V)
Contrast 800:1800:1700:1700:11000:1
Resolution1920 x 12001920 x 10801024 x 7681920 x 10801280 x 1024
Brightness300nits300nits250nits300nits250nits
Viewing Angles80/80/80/8080/80/80/8080/80/60/7089/89/89/8985/85/80/80
BacklightLEDLEDLEDLEDLED
ModelITD173PPCT5KE1ITD18PPCT5KE1ITD19PPCT5KE1ITD21PPCT5KE1ITD24PPCT5KE1
Size17.3”18.5”19”21.5”24”
Active Area381.888(H) x 214.812(V)409.8(H) x 230.4(V)376.32(H) x 301.06(V)476.64(H) x 248.25(V)531.36(H) x 298.89(V)
Contrast 400:11000:11000:11000:11000:1
Resolution1920 x 10801366 x 7681280 x 10241920 x 10801920 x 1080
Brightness300nits250nits250nits250nits300nits
Viewing Angles70/70/60/6085/85/80/8085/85/80/8085/85/80/80 or 89/89/989/8989/89/89/89
BacklightLEDLEDLEDLEDLED
ModelITD27PPCT5KE1ITD32PPCT5KE1ITD42PPCT5KE1ITD55PPCT5KE1ITD65PPCT5KE1
Size27”32”42”/43”55”65”
Active Area597.6(H)x 336.15(V)698.4(H) x 392.85(V)930.24(H) x 523.26(V)1213.6(H) x 684.4(V)1428.48(W) × 803.52(H)
Contrast 1000:11000:11200:13000:14000:1
Resolution1920 x 10801920 x 10801920 x 10801920 x 10801920 x 1080
Brightness300nits350nits400nits400nits400nits
Viewing Angles89/89/89/8989/89/89/8989/89/89/8989/89/89/8989/89/89/89
BacklightLEDLEDLEDLEDLED
SPECIFICATION
System

CPU: ARM Eight-Core RK3288/RK3368,Main CPU frequency:1.5GHz;
Memory: Flash 8Gbit; DDR2, 2Gbit;
Graphics Card: Android HD
OS: Android 4.4/5.1
Kernel Version: 3.0.28
Storage: USB 2.0 Host;
MMC Card: 256Mbyte~ 16Gbyte;
SD Card: 256Mbyte~ 16Gbyte
Video Output: HDMI video output;
Audio Output: dual stereo audio output;
Power: External Power Supply DC 12V for 10.1”~24”; Internal Power Supply AC100~240V for 27”~65”

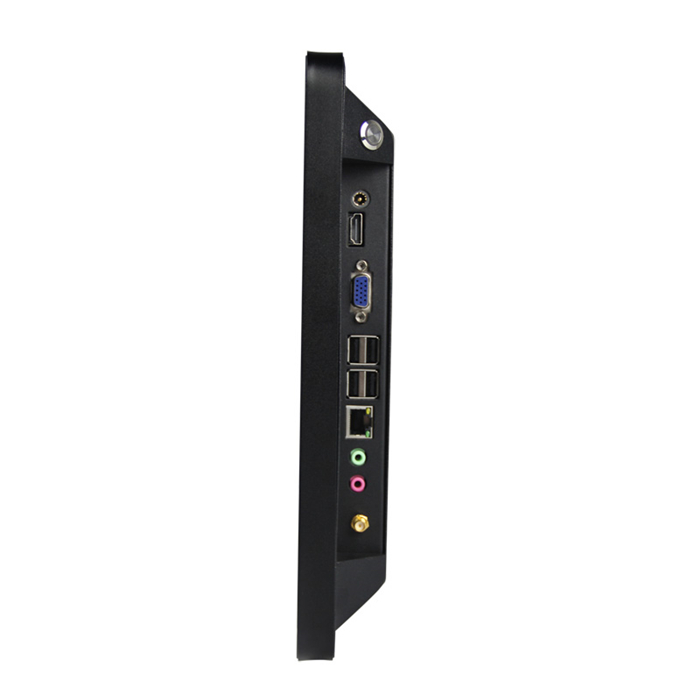

Input/Output

1 x HDMI
2 x USB 2.0 Host
1 x RJ45 10/100M

Operating Temperature0~60℃
Storage Temperature-20~70℃
Relative Humidity20%~90%
OS SupportWindows 7/ Windows XP/ Windows 8/ Windows 10/Linux
Mounting MethodVESA, Side mounting brackets(optional)
AccessoriesPower cable, Motherboard CD driver, Screws
Order InformationZero-Bezel Panel PC with PCAP Touch/ITD**PPCT5KE1
Zero-Bezel Panel PC with Tempered Glass/ITD**PPCG1KE1

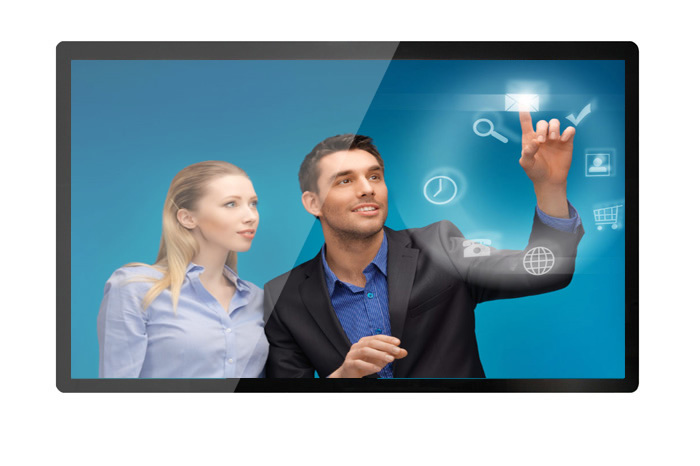

Product Display:


All In One Android HD Touch Panel PC 10.1 Inch Widescreen With Zero BezelAll In One Android HD Touch Panel PC 10.1 Inch Widescreen With Zero Bezel


Applications:

All In One Android HD Touch Panel PC 10.1 Inch Widescreen With Zero Bezel
