High Resolution Multi Touch Panel PC , Industrial All In One PC 12.1” 33.9W Power

Name: High Resolution Multi Touch Panel PC Industrial All In One PC 121 339W Power
Brand: ITD/OEM
Price: 1 USD

Quality High Resolution Multi Touch Panel PC , Industrial All In One PC 12.1” 33.9W Power wholesale

Brand Name : ITD/OEM

Model Number : ITD12PPCT5XJ

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 5-15 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm

CPU : Intel J1900/i3/i5/i7/Android

Active are : 246.0(H)×184.5(V)mm

Operating Temperature : -10~60℃(-20~70℃ optional)

Operating Humidity : 10%-90% (Non Condensing)

24/7/365 Use : Supported

Resolution : 800x600

View Angels : 80/80/70/70

brightness : 300 nits

Contact Now

12.1" panel mounted touchscreen industrial PC flat aluminum bezel

Specifications:

Flat Bezel Industrial Panel PC
Model Name		ITD12PPCG1X**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		12.1”
Display Active Screen Size (cm)		246.0(H)×184.5(V)
Aspect Ratio		4:3
Physical Resolution		800×600
Maximum Resolution Supported		1920×768
Colors		16.7M
Brightness (cd/m²)		300
Contrast Ratio		600:1
View Angels		80/80/70/70
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'LifetimeV
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		33.9W
Order Information
12.1”Panel Mount Panel PC with Resistive Touch, J1900		ITD12PPCT1XJ1
12.1”Panel Mount Panel PC with PCAP Touch, J1900		ITD12PPCT5XJ1
12.1”Panel Mount Panel PC with Tempered Glass, J1900		ITD12PPCG1XJ1
12.1”Panel Mount Panel PC with Resistive Touch, i5		ITD12PPCT1XI5
12.1”Panel Mount Panel PC with PCAP Touch, i5		ITD12PPCT5XI5
12.1”Panel Mount Panel PC with Tempered Glass, i5		ITD12PPCG1XI5

ITD industrial panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mount panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.

BENEFITES

Exceptional quality and highly engineered industrial panel computer
High Performance Processor, Graphics, Memory and Power
Edge to edge design with true flat surface, easy to clean
Optional touchscreens like resistive, PCAP
All steel construction designed for harsh and industrial environments
Easy-to-install embedded/panel mounting with clamps
Robust design with aluminum NEMA 4/ IP65 front panel
Flexible, reliable, and ruggedized for open platform HMI/SCADA

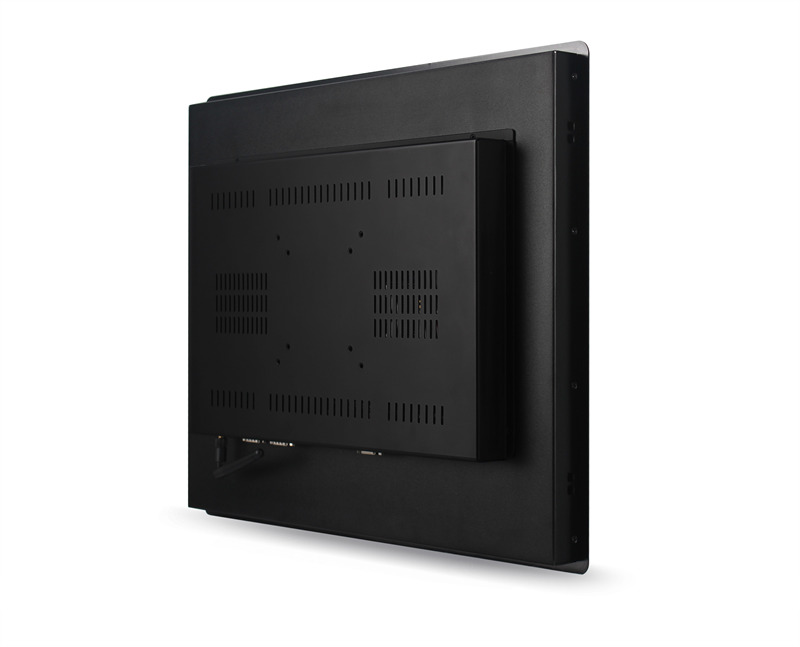

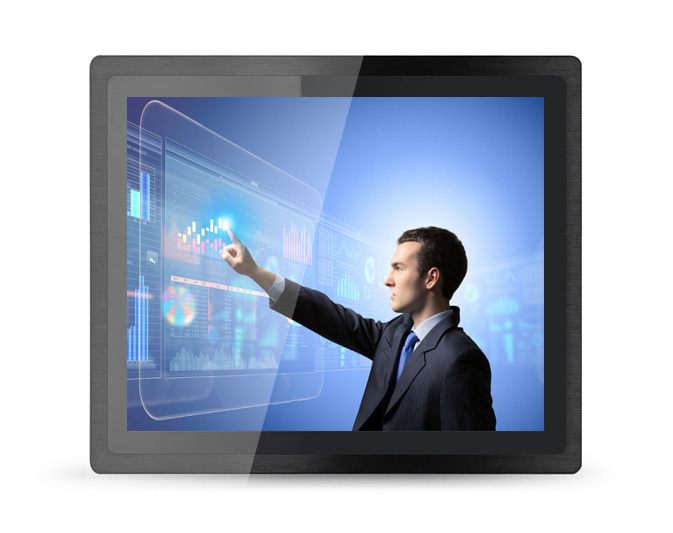

Product Display:
