9.7 Inch Embedded Industrial LCD MonitoTouchscreen Rugged Panel Mount HD LCD Display

Product Categories

Shenzhen ITD Display Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 97 Inch Embedded Industrial LCD MonitoTouchscreen Rugged Panel Mount HD LCD Display
Brand: ITD/OEM
Price: 1 USD

Brand Name : ITD/OEM

Model Number : ITD09CMT101

Certification : CE,FCC, RoHS Compliance

Place of Origin : China

MOQ : 1PCS, No MOQ

Price : TBA

Payment Terms : T/T

Delivery Time : 10-15 Business days

Contact Now

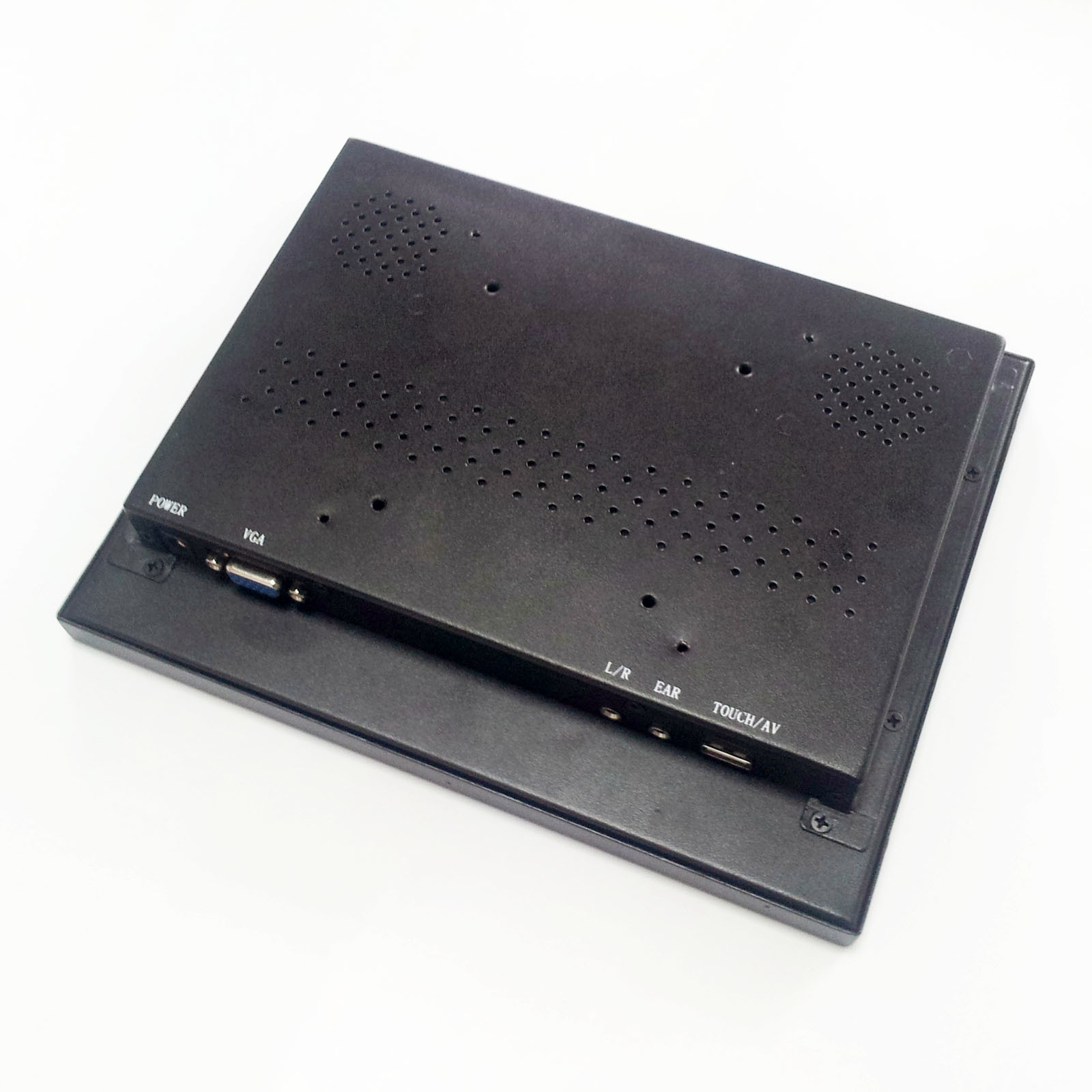

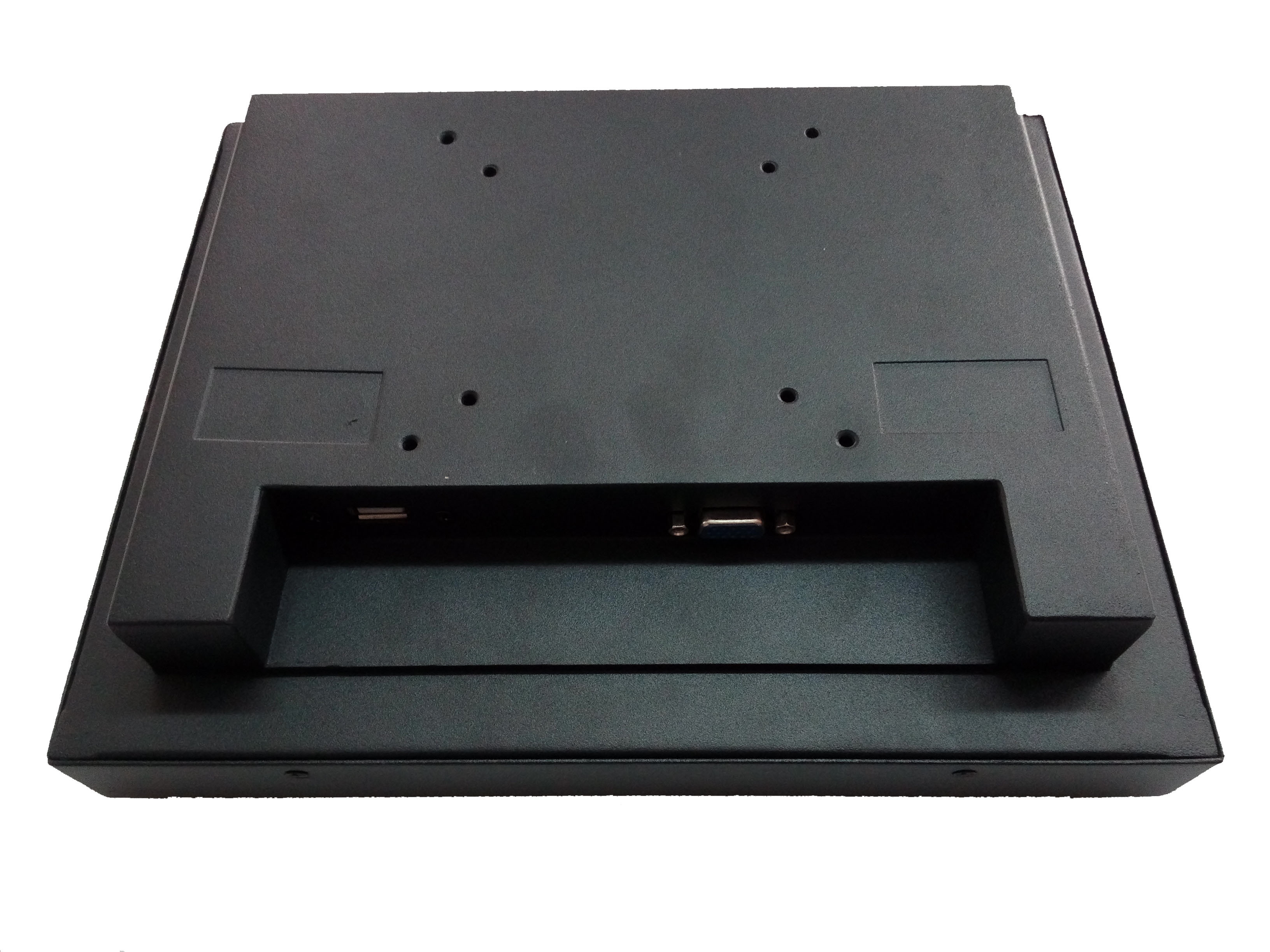

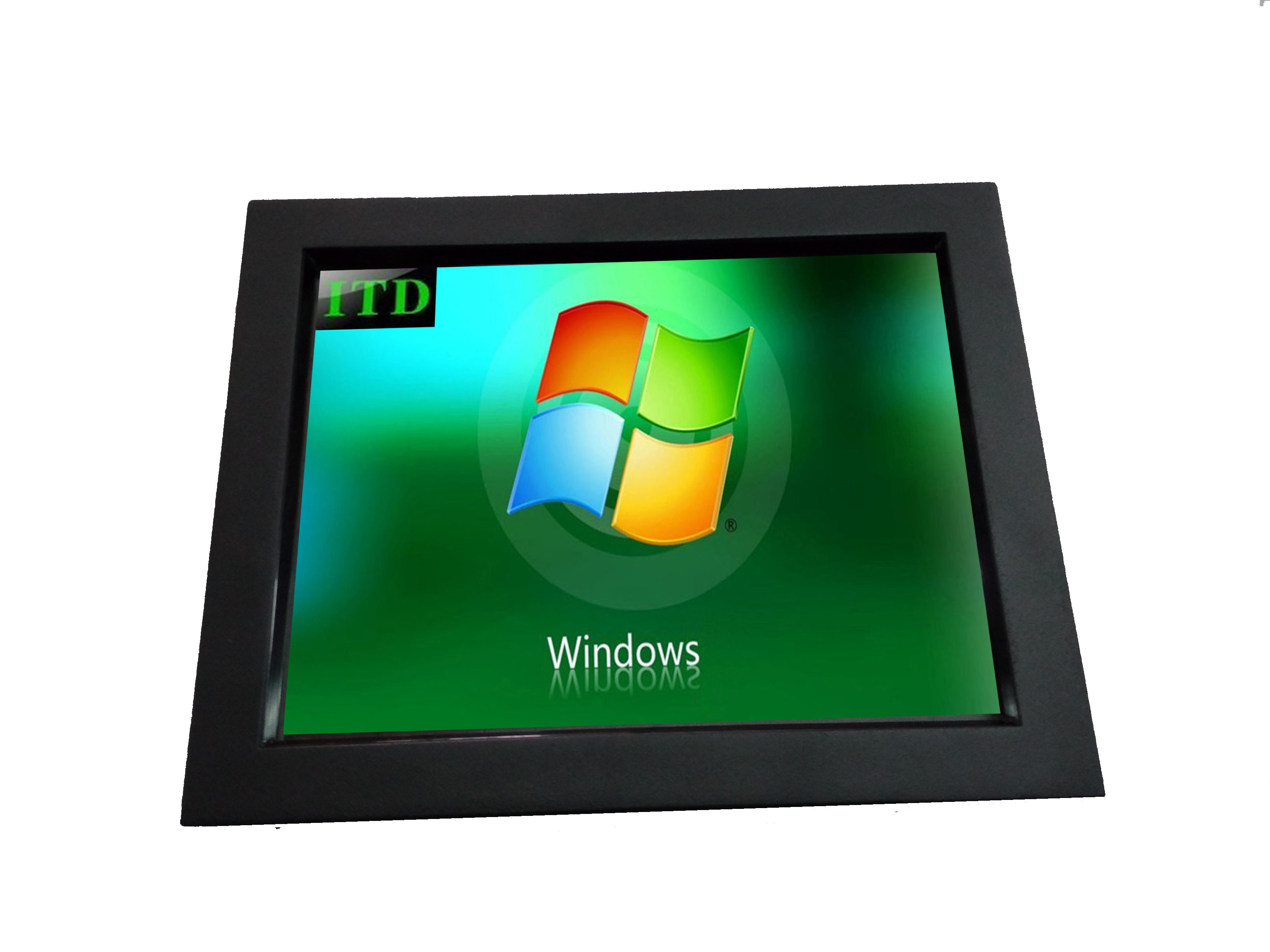

9.7 Inch Embedded Industrial LCD MonitoTouchscreen Rugged Panel Mount HD LCD Display

FEATURES

•High contrast color TFT LCD display supports resolution up to 1024 x 768

•Supports DDC 1/2B for Plug & Play compatibility

• Advanced OSD control for picture quality adjustment

•All steel construction designed for harsh and industrial environments

•The LED backlight enables optimal viewing in all lighting conditions

•CE,FCC, RoHS Compliance

OPTIONALS

•AR/AG Tempered glass

•Touch sensor technologies: SAW, IR, PCAP

•High brightness, sunlight readable

•AV, S-Video inputs, RS232 remote control

SPECIFICATION

Panel	Cell Type/Glass Surface	TFT
	Aspect Ratio/Size	9.7” /4:3
	Active Area/Pixel Pitch	196.608(W) x 147.456(H)/0.192mm
	Native Resolution/Colors	1024 x 768 /262K
	Brightness/Contrast	400nits/600:1
	Response Time	30ms
	Viewing Angle(Typical)	80/80/80/80
	Light Source	LED backlight with 50000hours’lifetime
Frequency	55Hz~75Hz
Input signals	VGA,HDMI
Convenient Features	Backlight adjustment, Plug & Play, OSD Multi-Languages
Power	External AC-to-12VDC power adapter with universal/Auto-Sensing
Power Consumption	Operation/Power Saving: Below 15W
Touch Panel	Resistive touch screen
Touch interface	USB
Key Control	Power on/off with LED, Menu, Select, Adjustment(Right/Left)

Product Tags:

Embedded Industrial LCD Monitor
