12.1 Inch Industrial HMI Touch Panel PC Capacitive Resistive Touchscreen All In One

Name: 121 Inch Industrial HMI Touch Panel PC Capacitive Resistive Touchscreen All In One
Brand: ITD/OEM
Price: 1 USD

Quality 12.1 Inch Industrial HMI Touch Panel PC Capacitive Resistive Touchscreen All In One wholesale

Brand Name : ITD/OEM

Model Number : ITD12PPCTxB-J1900/ITD12PPCTxB-I5-4200U/ITD10PPCTxB-I7-4500U

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Delivery Time : 7-12 work days

Packaging Details : Foam,gift box,master carton,wooden case,pallet

CPU : Onboard Intel J1900/4th Iintel Core i3/i5/i7

System memory : Onboard DDR3L 4GB Memory / Optional SODIMM SKU

Ethernet : 2x GbE RJ45 Intel i211

DC inut : DC 9 ~ 36V with 3-pin terminal block

Luminance : 350cd/m2 1000cd/m2 optional

Touch screen : 5 wire resistive, pcap touch optional

Price : TBA

Contact Now

12.1 inch Industrial HMI Touch Panel PC capacitive resistive touchscreen all in one

BENEFITES of 12.1" industrial HMI

- Exceptional quality and highly engineered industrial panel computer

- High Performance Processor, Graphics, Memory and Power

- Edge to edge design with true flat surface, easy to clean

- Excellent heat dissipation with aluminum heatsink, fan-less design

- All robust aluminum construction designed for harsh and industrial environments

- Easy-to-install embedded/panel mounting with clamps

- Robust design with NEMA 4/ IP65 front panel

- Flexible, reliable, and ruggedized for open platform HMI/SCADA

- Long lasting product cycle for continuity thru all phases of project

Specs OF HMI touch panel PC:

Industrial HMI Touch Panel PC

Model Name

ITD12PPCT5B-xxxx

IP Rating

IP65 Front Panel

PC Systems Options

X86 Windows Based
CPU: Intel? Celeron J1900 2.0GHz

Chipset: Intel Bay Trail SoC

Memory: DDR3L SODIMM SKU, Up to 8GB

Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )

1 × HDMI, 2×GbE RJ45 Intel? i211

3 × USB2.0 , 1 × USB3.0 , 1×USB2.0 dongle

2 × DB-9 COM1&COM2,RS-232/422/485

2 × 3-wire COM3&COM4 RS-232/485 with terminal block

2 × 3-wire COM5&COM6 RS-232 with terminal block

1 × Audio Out, 1×Line Out, 2 x 8Ω 1W Audio AMPout
1 × A T/ATX switch, 1 × 14 bit GPIO (Optional), 1 × Remote switch with terminal block
Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
Mini-PCIe×1 half size for WIFI/BLT

X86 Windows Based

CPU: Intel? 4th 6th/7/8th Gen.Core i3/i5/i7 CPU

Chipset: Intel SoC

Memory: DDR3L SODIMM SKU, Up to 8GB

Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )

1 × HDMI, 2×GbE RJ45 Intel? i211

3 × USB2.0 , 1× USB3.0 , 1×USB2.0 dongle

2 × DB-9 COM1&COM2,RS-232/422/485

2 × 3-wire COM3&COM4 RS-232/485 with terminal block

2 × 3-wire COM5&COM6 RS-232 with terminal block

1 × Audio Out, 1×Line Out, 2 × 8Ω 1W Audio AMPout
1 × A T/ATX switch, 1 × 14 bit GPIO (Optional), 1 × Remote switch with terminal block
Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
Mini-PCIe×1 half size for WIFI/BLT

LCD Panel

Screen Diagonal (Inch)

12.1”

Display Active Screen Size (cm)

246.0(H)×184.5(V)

Aspect Ratio

4:3

Physical Resolution

800×600 (1024×768 optional)

Maximum Resolution Supported

1920×1080

Colors

16.7M

Brightness (cd/m2)

350

Contrast Ratio

800:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'LifetimeV

Touch Panel

Touch Options

Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel

Touch Drivers

Windows 7/8/10, Linux, Android, Mac

Operation

Operating Temperature Range

-20~60°C

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 9-36V with 3-pin terminal block

Power Consumption

35W

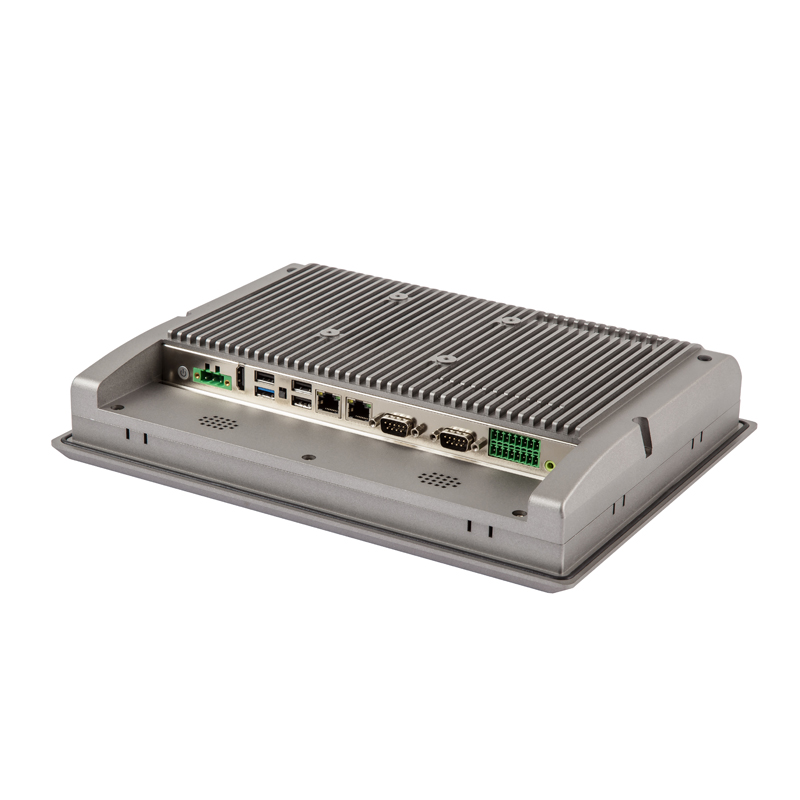

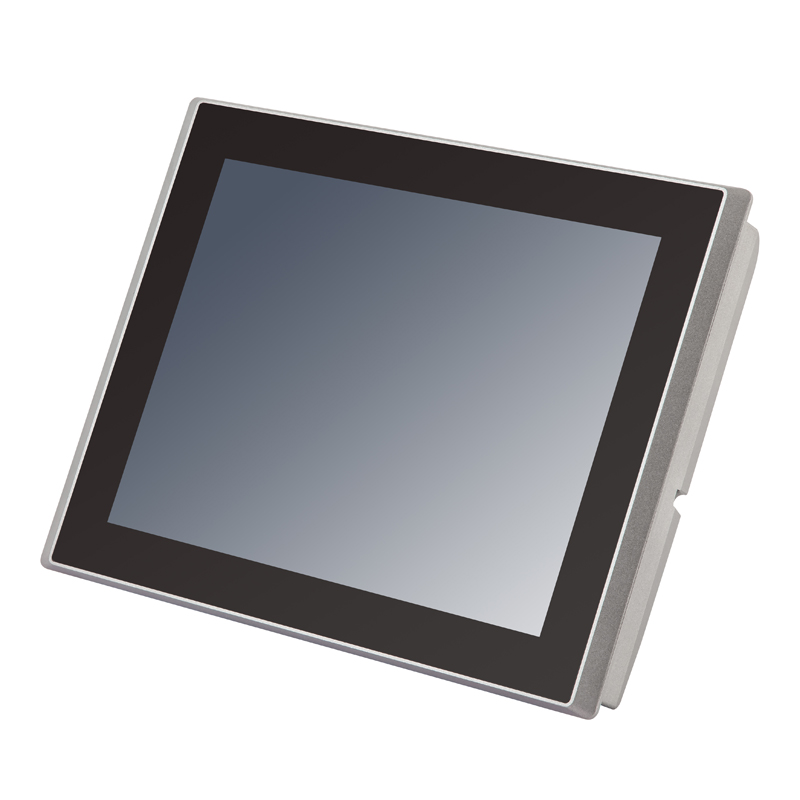

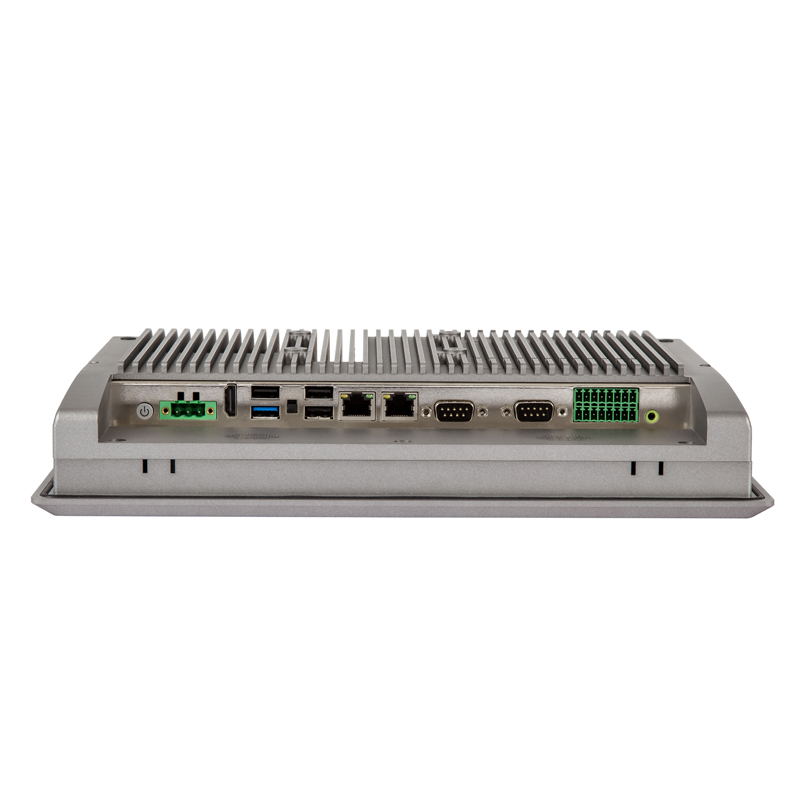

Produce image:

12.1 Inch Industrial HMI Touch Panel PC Capacitive Resistive Touchscreen All In One
