Home > IP65 Panel PC >

21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing

Product Categories
Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD21PPCT5B-10310U

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 5000PCS/Month

Delivery Time : 5-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm

Housing Material : Die-Casting Aluminum Housing Fanless

Communication : 4G, 5G, WIFI, BT

Operating Temperature : -20~60℃(-20~70℃ optional)

I/O : 4 x USB2.0 , 2 x USB3.0 (J4125/J6412) 1 1 2 x USB2.0 , 4 x USB3.0 (8th/10th/11th intel Core i5/i7) 2 x DB-9 COM1&COM2,RS-232/422/485

IP Rate : IP65 front panel

Brightness : 250nits, 1000nits optional

CPU : lntel i5-10310U/10210U

OS Support : Windows 7, Windows 10, Windows 11

MTBF : 50000h

Contact Now

touch panel computer fanless industrial pc 21.5" i5-10310U​

Features of touch panel computer

  • Onboard powerful lntel Core i5-10310U
  • 4G, 5G, Bluetooth and WIFI optional
  • Die-Casting Aluminum Housing with Fanless Operation
  • IP65 Front Bezel
  • Modular Design and easy for maintenance
  • Wide DC Support 9 ~ 36V
  • High brightnesss optional
  • Multi touch capacitive or resistive touch

Applications of IP65 panel PC

  • Industrial Automation
  • Transportation
  • Robots
  • IoT
  • Marine
  • Fitness clubs
  • Warehouse&Logistics
  • Healthcare
  • Government
  • Smart charging station
  • Gas Station
  • Amusement Park
  • Outdoor Kiosks

Processor lntel Celeron J4125/J6412 CPU
lntel Core 8/10/11代-U i5/i7 CPU
System Memory J4125/J6412: DDR4 SODIMM x1
Core i5/i7: DDR4 SODIMM x2
Ethernet 2x 2.5 GbE R
J45 Intel® i225V (4 x 2.5GbE RJ45 Intel i225V)
I/O Port

4 x USB2.0 , 2 x USB3.0 (J4125/J6412)
1 1 2 x USB2.0 , 4 x USB3.0 (8th/10th/11th intel Core i5/i7)
2 x DB-9 COM1&COM2,RS-232/422/485

1 x Audio Line-out

2 x 8Ω 1W Audio AM P out (Optional)

1 x AT/ATX switch

1 x HDMI

1 x Expansion IO:4x3-wire COM, 1 x10bit GPIO,
1x Remote switch
Storage Disk Driver 1 x M.2 2242/2260/2280 SATA
1 x SATA(2.5'' SATA )
1 x M.2 2280 NVME
Expansion Slot M.2 3042/3052 with SIM Card for 3G/4G/5G
M.2 2230 WiFi/Bluetooth
Watchdog timer 1~655 35S
OS support Windows® 10/11, WES 10, LINUX
Construction Aluminum
Mounting VESA 75/ 100 Panel mount

Operating TMP -20°C ~ 60 °C
Storage TMP - 30°C ~ 70°C
Storage Humidity 10~90% @30°C, non-condensing
DC Input DC 9 ~ 36V 4-pin M12 connector
Display Type 19" TFT-LCD
Max.Resolution 1280*1024
Max.Colors 16.7M
Luminance 350 cd/m²
Viewing Angle(CR>=10) -8 5 ~ 8 5 ° ( H) , - 8 0 ~ 8 0 ° ( V )
Back Light MTBF (hours 50000H

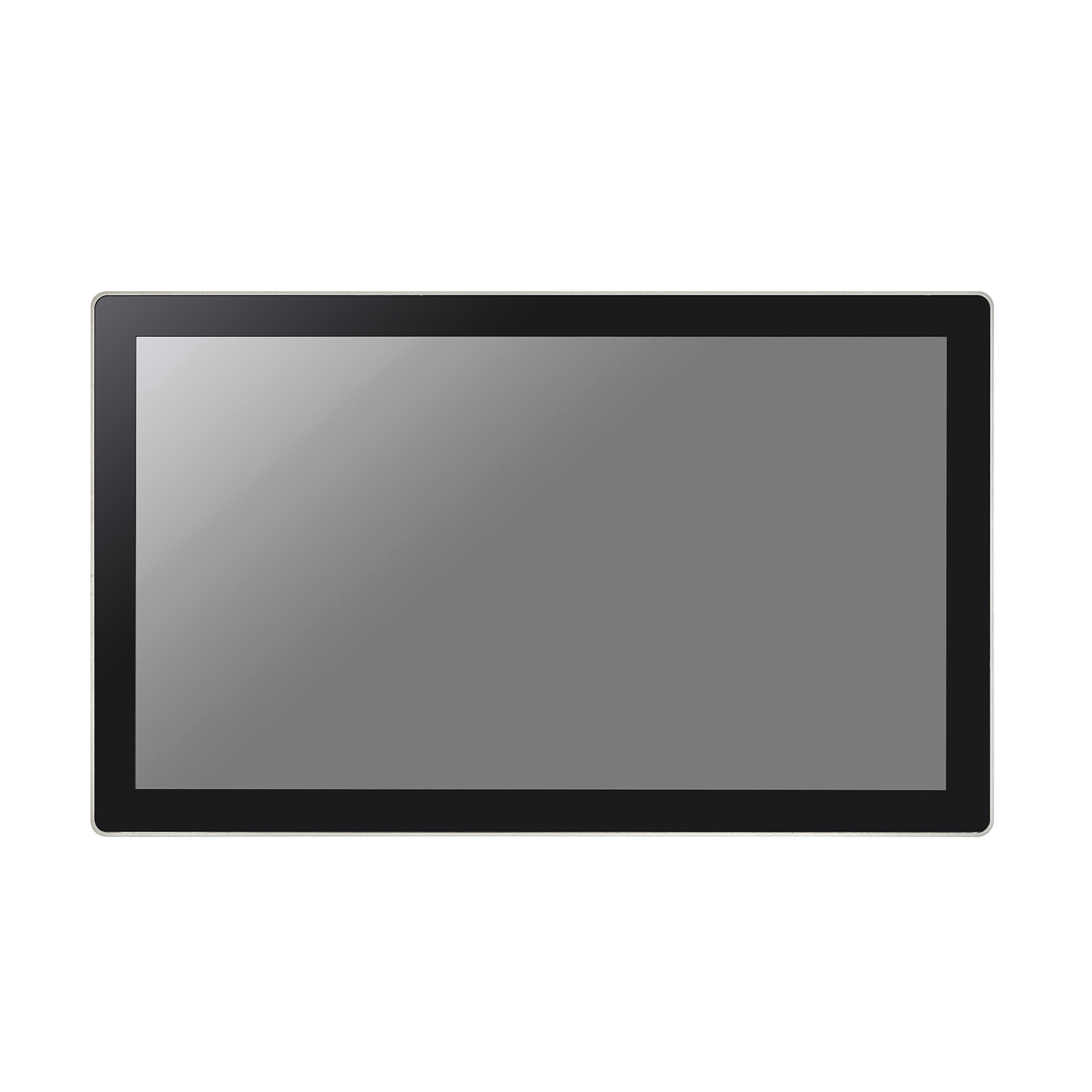

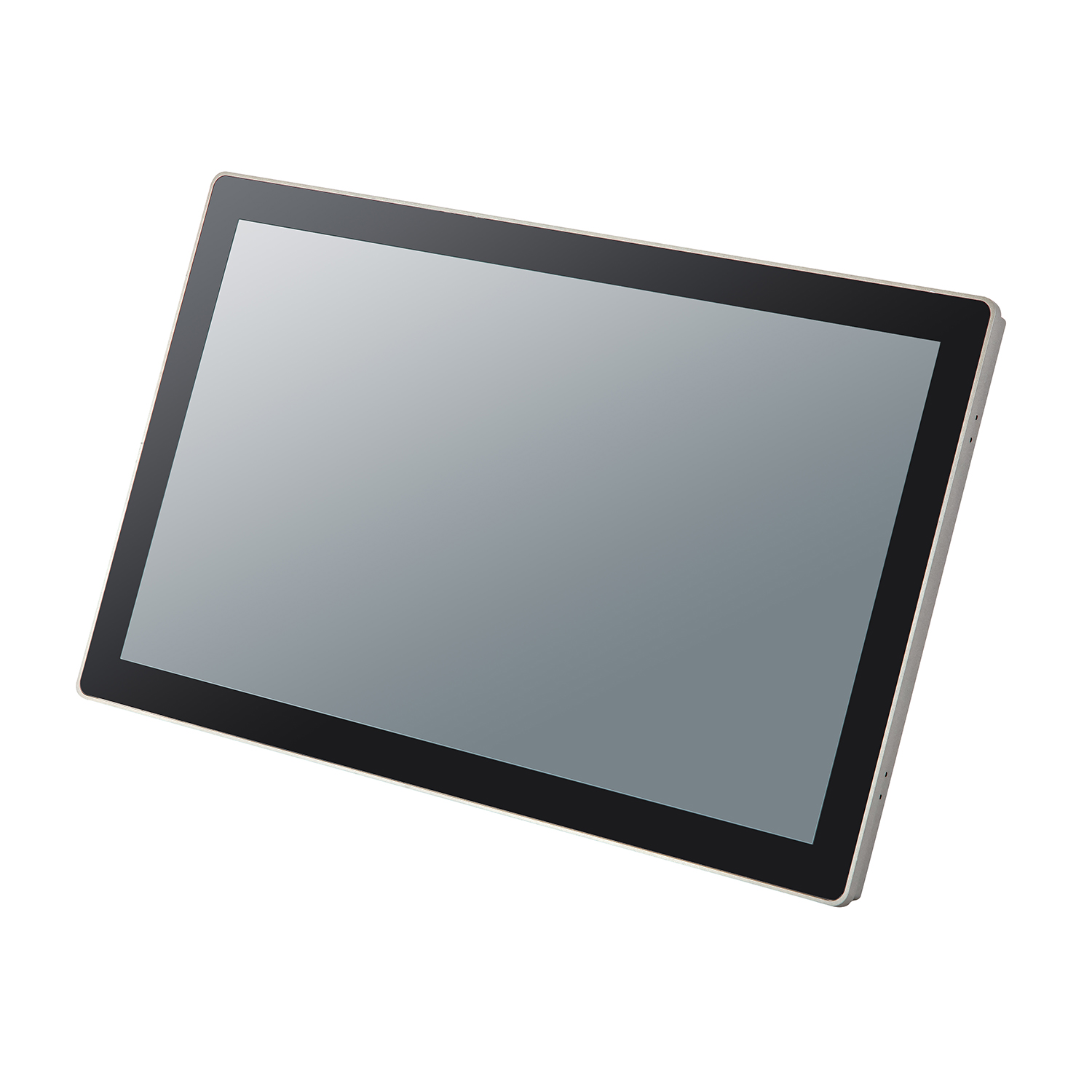

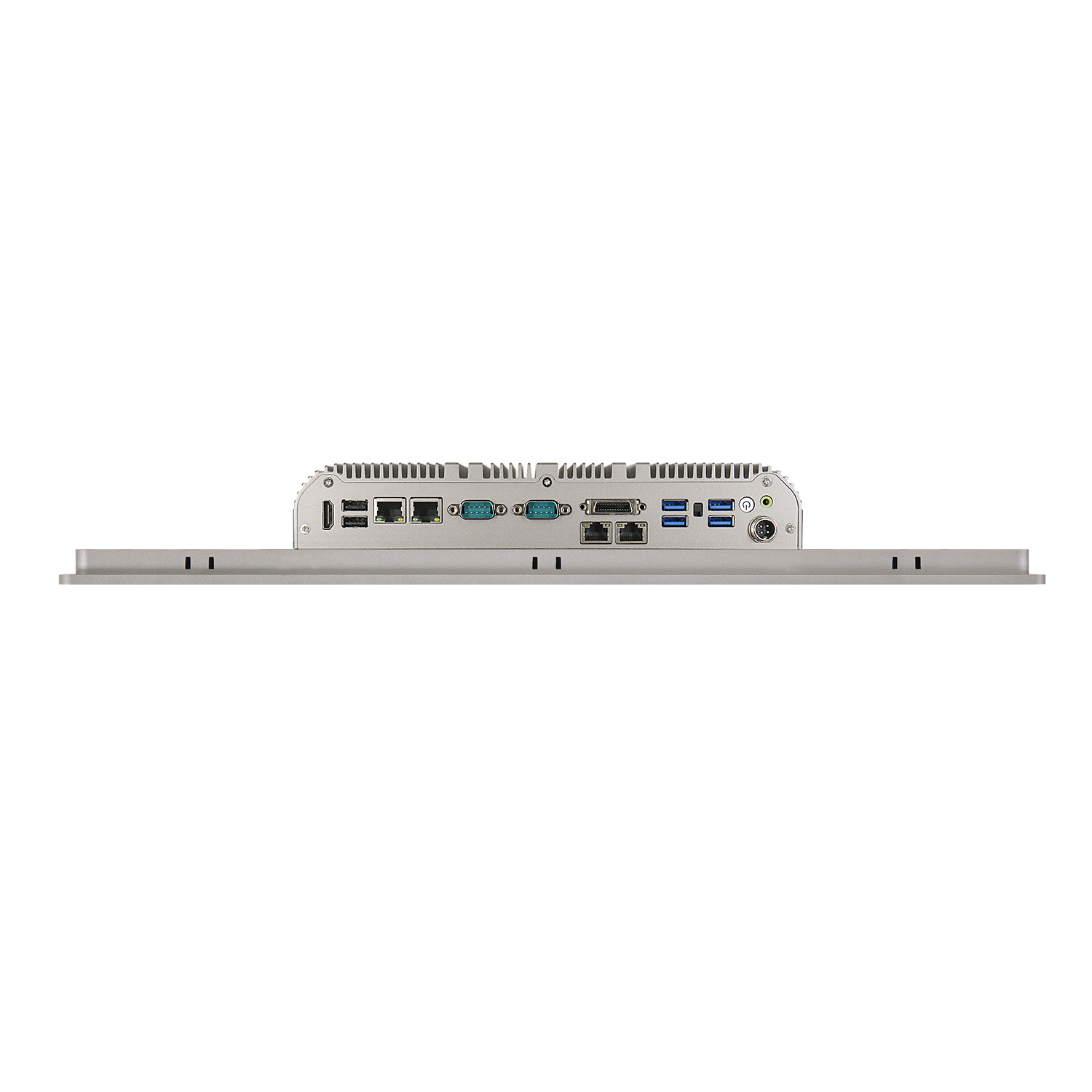

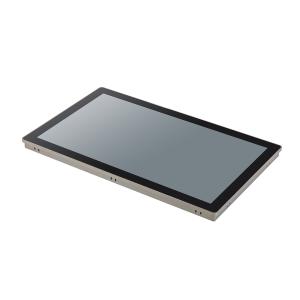

Photos of 21.5inch IP65 fanless panel PC

21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing

21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing

21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing
