Shelf Edge Cob Shelf Display 29.3" Stretched Android Display PCAP

Name: Shelf Edge Cob Shelf Display 293quot Stretched Android Display PCAP
Brand: ITD/OEM
Price: 1 USD

Quality Shelf Edge Cob Shelf Display 29.3" Stretched Android Display PCAP wholesale

Brand Name : ITD/OEM

Model Number : ITD29SDN1E1

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 5-15 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm

Single Media Player : ARM Android Based RK3288(RK3368 optional)

Chipset: MSTAR : CPU: Quad-Core Cortex-A17 1.8GHz

inch : 29.3"

Operating temp : -10~60°C (-20~70°C Optional)

Unit dimension : 726×300 mm

Power Input : External Power Supply, DC12- 24V

Tempered Glass : optional

View Angels : 89/89/89/89

Contact Now

Shelf Screen advertising display media player LCD commercial Ultra stretched bar lcd display for supermarket

ITD stretched bar-type LCD displays with ultra-wide aspect ratio is perfect for catching people’s attention that’s a perfect alternative of traditional LED displays, Take solace in ITD’s Bar LCD Monitor when integrating it into a display as it will always captivate audiences and work to provide as an informative display for any application. The stretched LCD display is a powerful tool for advertising or as an information display that can be with optional single SD card and USB port, ARM based player and single monitor with VGA, DVI, HDMI inputs integrated. ITD stretched bar type LCD display comes with standard 500nits or 1000nits that can be used in indoor/outdoor projects that include, but are not limited to digital signage, restaurant displays, airport terminal signs, public transportation or places that would like to have a special screen for signage displays. The special bar LCD monitor is sturdy and fits well into many applications.

Specs

Stretched Bar LCD Display
Model Name		ITD29SDN1**
IP Rating		Optional
Configuration Options
Single LCD Monitor	Single Media Player		ARM Android Based RK3288(RK3368 optional)
1×VGA Input	Chipset: MSTAR		CPU: Quad-Core Cortex-A17 1.8GHz
1×DVI Input	Video Formats Supported: MP4,AVI,DAT,MPG,RM,RMVB,AVC,FLV		Chipset: N/A
1×HDMI Input			Memory: 1G/2G
1×DC 24V Input	Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE File Formats Supported: FAT, FAT32, NTFS		HDD/SSD: 8G
			1×HDMI
	Picture Formats Supported: JPEG, BMP, GIF, PNG 1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot		1×USB 2.0
			1×mini-SD slot
			1×LAN
	1×Audio Out		1×Audio Out
	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		29.3”
Display Active Screen Size (mm)		698.4(H)×262(V)
Aspect Ratio		TBA
Physical Resolution		1920×720
Maximum Resolution Supported		1080P
Colors		16.7M
Brightness (cd/m2)		500 (1000 Optional)
Contrast Ratio		1200:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options Tempered Glass		PCAP (Customized) Optional
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power /Speakers
Power Indicator		Green LED
Power Input		External Power Supply, DC 24V
Power Consumption Speakers		45W Optional
Mechanical Dimension
Outline Dimension(mm)		726×300
Order Information
29.3”Stretched LCD Monitor		ITD29SDN101
29.3”Stretched LCD with Single Media Player		ITD29SDN1A1
29.3”Stretched LCD with Android Media Player		ITD29SDN1E1
29.3”Stretched LCD Monitor 1000nits		ITD29SDN1HB01
29.3”Stretched LCD with Single Media Player 1000nits		ITD29SDN1HBA1
29.3”Stretched LCD with Android Media Player 1000nits		ITD29SDN1HBE1

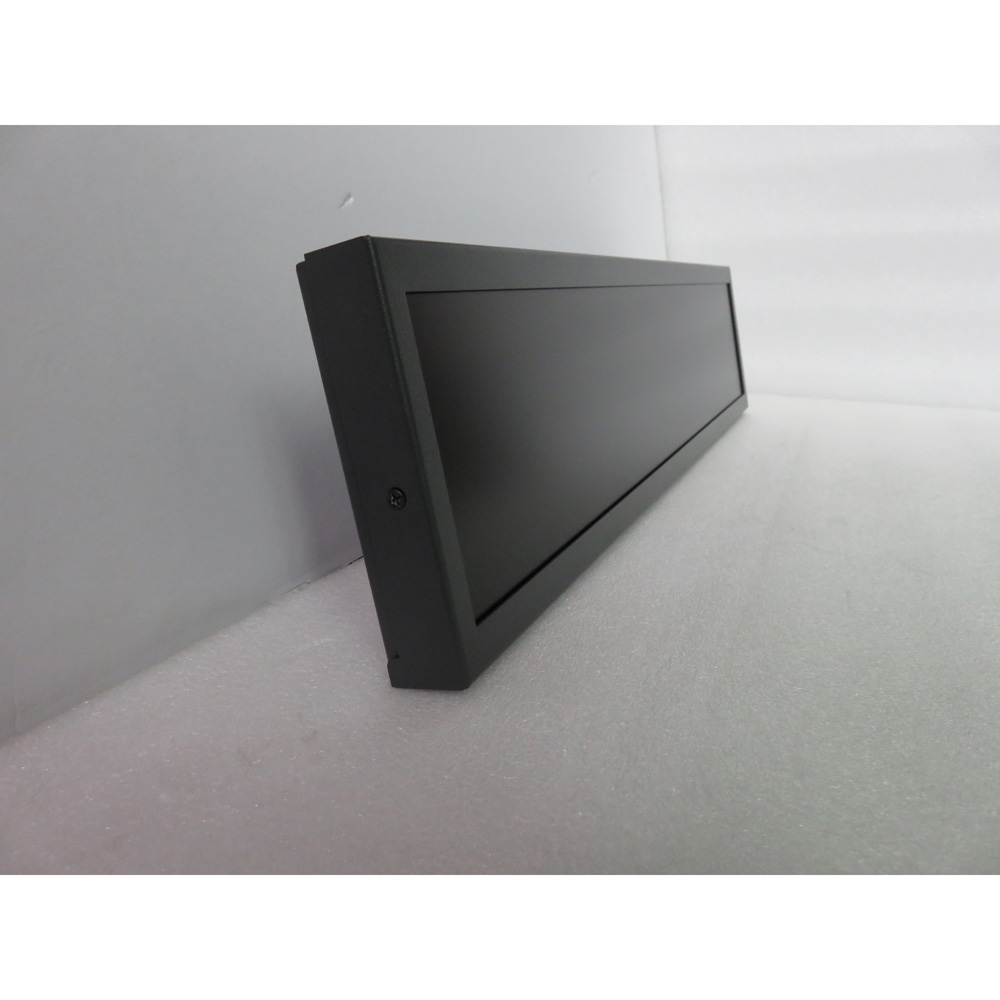

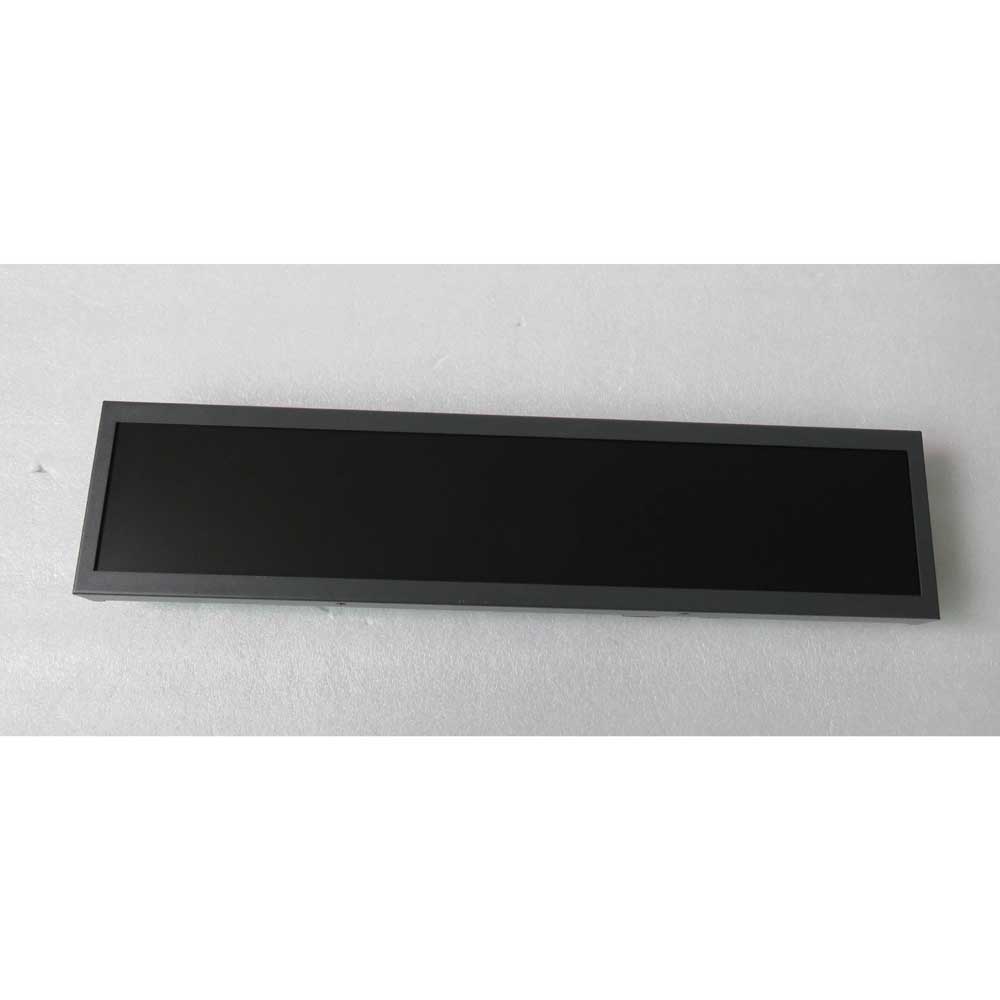

Product Display

Shelf Edge Cob Shelf Display 29.3" Stretched Android Display PCAP

APPLICATION

Shelf Edge Cob Shelf Display 29.3" Stretched Android Display PCAP
