RK3288 15.6in PCAP Touch Android Panel Zero Bezel AIl In One PC

Product Categories

Shenzhen ITD Display Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: RK3288 156in PCAP Touch Android Panel Zero Bezel AIl In One PC
Brand: ITD/OEM
Price: 1 USD

Brand Name : ITD/OEM

Model Number : ITD156PPCT5KE1

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

panel : TFT

Size : 15.6inch

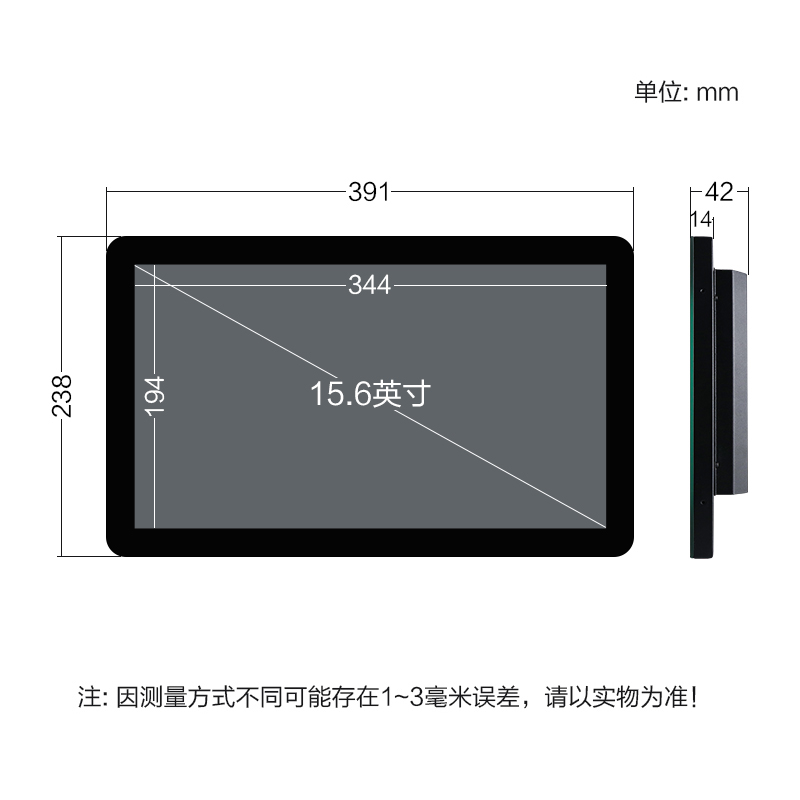

Active Area : 344.16mm(W)×193.59mm(H)

Viewing Angle : 89/89/89/89

brightness : 300 cd/m2

CPU : ARM Quad Core RK3288 Cortex-A17/RK3369

SD RAM : 2G; 4G Optional

Contact Now

15.6”Zero-Bezel pure flat PCAP Touch Android Panel PC AIll in one PC

FEATURES

• Centralized server controls content distribution;

• Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation;

• Easy WIFI network system installation without the need for extra IT, firewall or security configurations;

• Simple content scheduling and updating for each display;

• Restart and update digital signage players remotely;

• Create and update separate schedules for each display, al owing for targeted ads at each terminal or different locations;

• Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;

• Transfer schedules and contents to one or more displays

Panel	Cell Type/Glass Surface	TFT
	Size/ Aspect Ratio	15.6”/16:9
	Active Area/ Pixel Pitch	344.16mm(W)×193.59mm(H) /0.17925(H)×0.17925(V)mm
	Native Resolution/ Colors	1920 x 1080/262K
	Brightness/ Contrast	300cd/㎡/700:1
	Response Time	25ms
	Viewing Angle(Typical)	89/89/89/89
	Light Source	LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System	CPU: ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz GPU: Mali-T764 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G/128G Optional OS: Android 6.0/7.1; Bluetooth: Optional Video Decoder: 4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output	1 × HDMI; 2 × USB Max. 6× USB 1 × TF Card Support 8~128GB; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); 1 × DC 12V 2.0; 3G/4G Optional Com Port optional
Operating Temperature	-10~60℃
Storage Temperature	-20~70℃
Relative Humidity	10%~90%
Order Information	15.6”Zero-Bezel Android Panel PC with Tempered Glass/ITD156PPCG1KE2
