All In One Rugged Panel PC 350 Nits Face Recognition Supported For Access Control

Name: All In One Rugged Panel PC 350 Nits Face Recognition Supported For Access Control
Brand: ITD/OEM
Price: 1 USD

Quality All In One Rugged Panel PC 350 Nits Face Recognition Supported For Access Control wholesale

Brand Name : ITD/OEM

Model Number : ITD-08PPCG1BEC

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Delivery Time : 3-5working days

Packaging Details : Foam,gift box,master carton,wooden case,pallet

CPU : RK3288, RK3399

Screen Diagonal : 8"

Brightness : 350 nits

OS : Android 7.1

Bluetooth : included

IP rating : IP65 front

Temperature measurement : Supported

Face Recognition : Supported

Touch screen : Optional

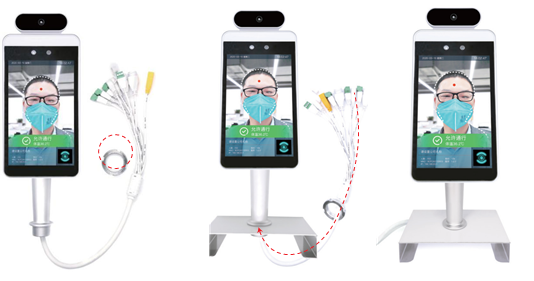

Mounting : Wall-Mounted, Desktop stand

Card Reader : embedded

Price : TBA

Contact Now

8 inch pass management temperature measurement face recognition all in One PC for access control

ITD new product-Pass Management Vertical Module of Temperature Measurement & Face Recognition uses Rockchip RK3288/RK3399/Qualcomm MSM8953 high-performance hardware platform, equipped with industrial-grade binocular camera, live face recognition technology and infrared thermal imaging module to support face-with-mask identity. It supports 1:1 and 1:N face comparison and retrieval, face-with-mas recognition and human temperature detection. It supports automatic alarm for body temperature abnormality. It also supports expansion of various peripherals such as ID card readers, fingerprint readers, etc., which can be applied to gate passages and attendance system to achieve safe and efficient access control for personnel.

Specifications

General parameters	Storage temperature	-20℃~60℃
	Power consumption	13.5W(Max)
	Installation method	Screwed by wall mount bracket

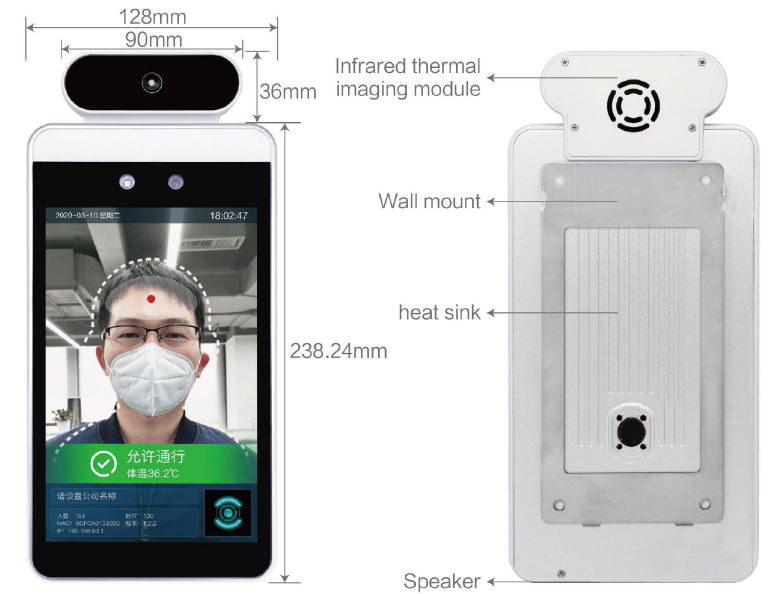

	Size	Standard:274.2412821.48(mm)
	Size	IC card / ID card:296.18132.8825(mm)
Packing list	Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1

128m

Function	Credit card reader	None (optional IC card reader, ID card, ID card)
	Face Detection	Supports detection and tracking of multiple people at the same time
	Face library	Up to 30,000
	1: N face recognition	Support
	1: 1 face comparison	Support
	Stranger detection	Support
	Identify distance configuration	Support
	UI interface configuration	Support
	Upgrade remotely	Support
	Interface	Interfaces include device management, personnel / photo management, record query, etc.
	Deployment method	Support public cloud deployment, privatized deployment, LAN use, stand-alone use
Infrared thermal imaging module	Temperature detection	Support
	Temperature detection distance	1 meter (optimal distance 0.5 meter)
	Temperature measurement accuracy	≤ ±0.5℃
	Temperature measurement range	10℃~42℃
	Thermal field of view	32 X 32℃
	Visitors' temperatu- re is normal and released directly	Support
	Abnormal tem- perature alarm	Support (temperature alarm value can be set)
General parameters	Power	DC12V(±10%)
General parameters	Operating temperature	0℃~60℃

Camera	Resolution	2 million pixels
	Type	Binocular wide dynamic camera
	Aperture	F2.4
	Focusing distance	50-150cm
	White balance	auto
	Photo flood light	LED and IR dual photo flood light
Screen	Size	8.0 inch IPS LCD screen
	Resolution	800×1280
	Touch	Not supported (optional support)
Processor	CPU	RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
Processor	Storage	EMMC 8G
Interface	Network module	Ethernet and wireless (WIFI)
	Audio	2.5W / 4R speakers
	USB	1 USB OTG, 1 USB HOST standard A port
	Serial communication	1 RS232 serial port
	Relay output	1 door open signal output
	Wiegand	One Wiegand 26/34 output, one Wiegand 26/34 input
	Upgrade button	Support Uboot upgrade button
	Wired network	1 RJ45 Ethernet socket

Product Display

All In One Rugged Panel PC 350 Nits Face Recognition Supported For Access Control
