12.1'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU|

Product Categories

Shenzhen ITD Display Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 121 Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i71355U CPU
Brand: ITD/OEM
Price: 1 USD

Brand Name : ITD/OEM

Model Number : ITD12PPCT5B-1335U

Certification : CE,FCC, RoHS Compliance

Place of Origin : China

MOQ : 1PCS, No MOQ

Price : TBA

Payment Terms : T/T

Delivery Time : 10-15 Business days

Contact Now

12.1'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU|

FEATURES

▪ Onboard lntel J4125/J6412/N100/N150 Onboard Intel 8/10/11/12/13th Core i5/i7

▪ J4125/J6412: DDR4 SODIMM*1; N100/N150: DDR5 SODIMM*1 8/10/11th: DDR4 SODIMM*2; 12/13th: DDR5 SODIMM*2

▪ LCD+HDMI Output, Support Dual view/Simultaneous display

▪ Wide DC Support 9 ~ 36V

▪ Fanless Operation

▪ IP65 Front Bezel

SPECIFICATION

System	Processor	Onboard lntel J4125/J6412/N100/N150 Onboard lntel 8/10/11/12/13th Core i5/i7
	Memory	J4125/J6412: DDR4 SODIMM 1; N100/N150: DDR5 SODIMM 1 8/10/11th Gen: DDR4 SODIMM 2; 12/13th Gen: DDR5 SODIMM 2
	Chipset	Inter Valley View SSA-Cunit
	HDD	320GB SATA or 32GB SSD
	LAN	2x 2.5 GbE RJ45 Intel i225V/i226V(4xGbE RJ45 optional)
Panel	Cell Type/Glass Surface	Color TFT LCD
	Aspect Ratio/Size	15''/4:3
	Active Area/Pixel Pitch	304.1(H) x 228.1(V)/0.297mm
	Native Resolution/Colors	1024 x 768 /16.2M
	Response TBrightness/Contrast	1000nits/700:1
	Viewing Angle(Typical)	80/80/60/80
	Synchronization Range Horizontal/Vertica	31.5~60.0KHz/60~75Hz
	Light Source	LED backlight with 50000hours’lifetime
Input / Output	Serial Ports	2 x DB9 COM1&COM2,RS-232/422/485
	USB Ports	2 x USB3.0,4 x USB2.0 (J4125/J6412/N100/N150/11th) 4 x USB3.0,2 x USB2.0 (8/10/12/13th)
	HDMI Port	1 X HDMI
	AT/ATX Port	1 x AT/ATX
	1 x Expansion IO	4x3-wire COM, 1 x10bit GPIO, 1x Remote switch
	Audio	MIC-IN, LINE-OUT
Storage Disk Driver	1 x M.2 2242/2260/2280 SATA 1 x 2.5'' HDD/SSD 1 x M.2 2280 NVME
Expansion Slot	M.2 3042/3052 with SIM Card for 3G/4G/5G M.2 2230 WiFi/Bluetooth
Others	watchdog, PXE
OS support	Windows,Linux
Power	DC 9 ~ 36V 4-pin aviation connector
Max.Resolution	1024x768
Operating Temperature	-10℃~60℃
Storage Temperature	-20℃~70℃
Relative Humidity	10~90% @30°C, non-condensing

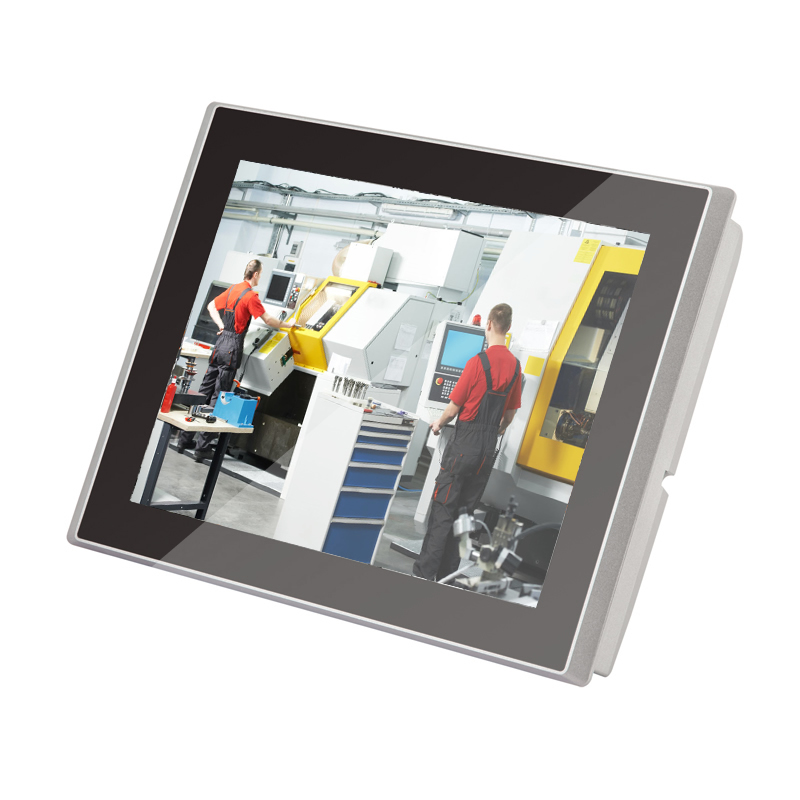

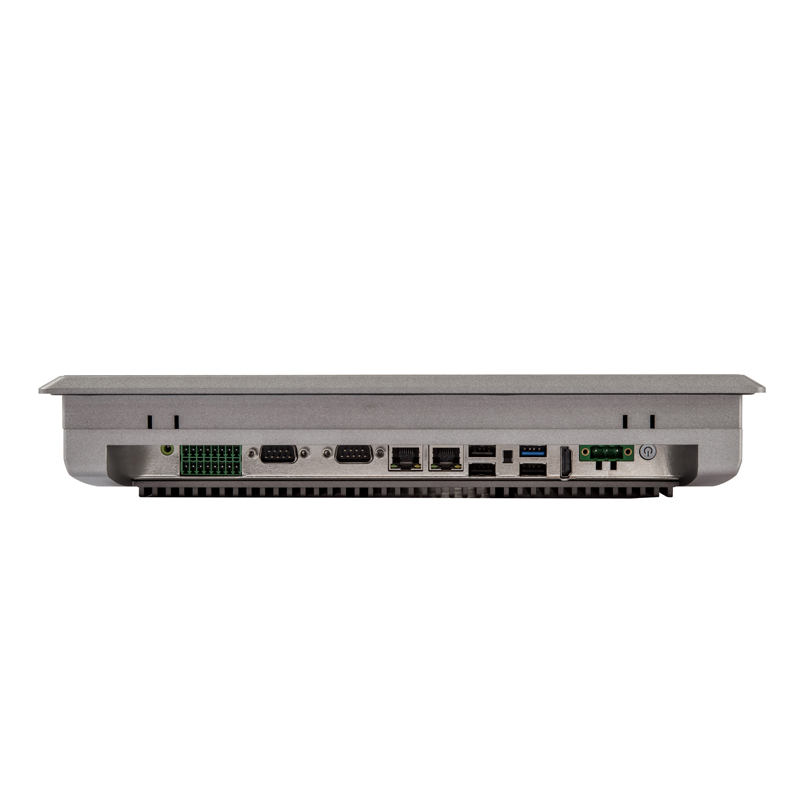

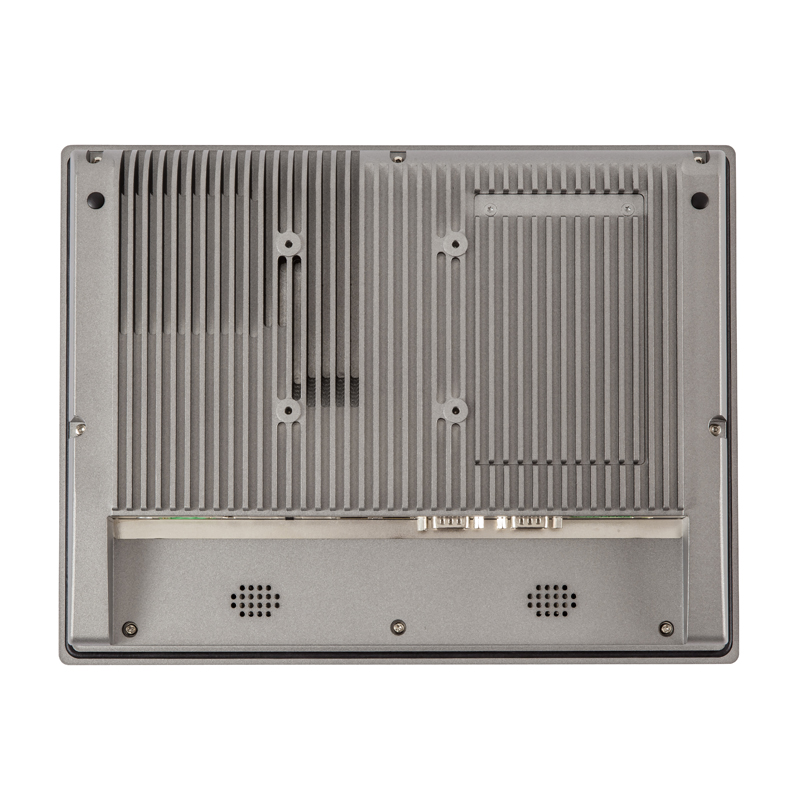

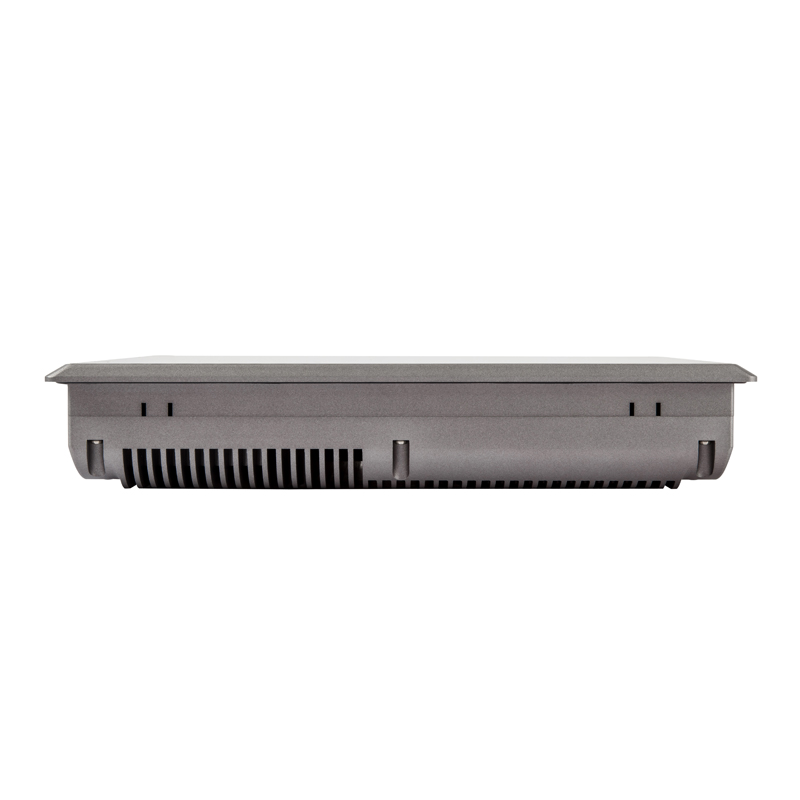

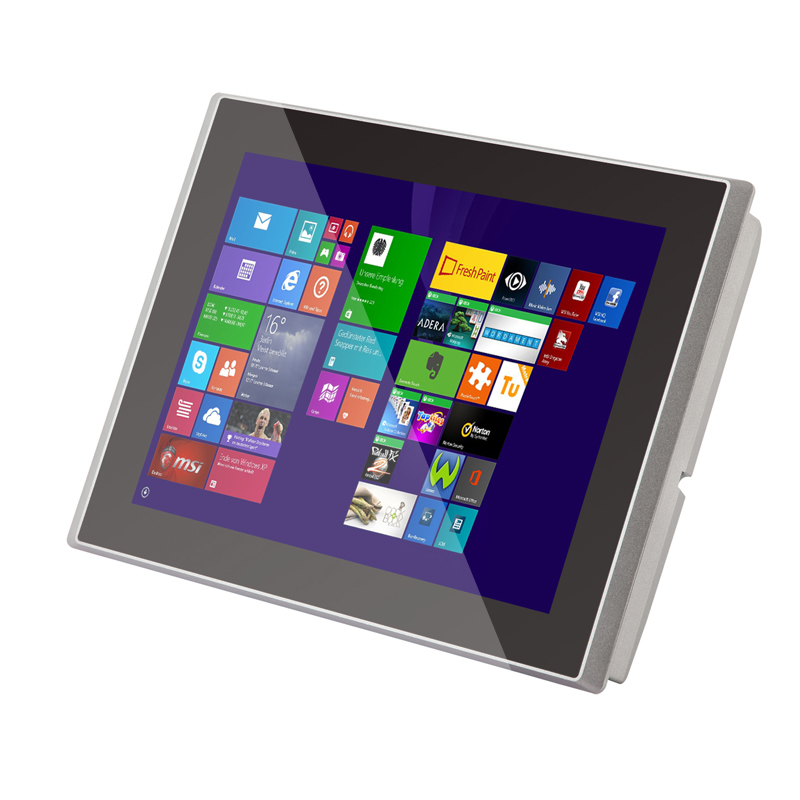

12.1'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU| Images
